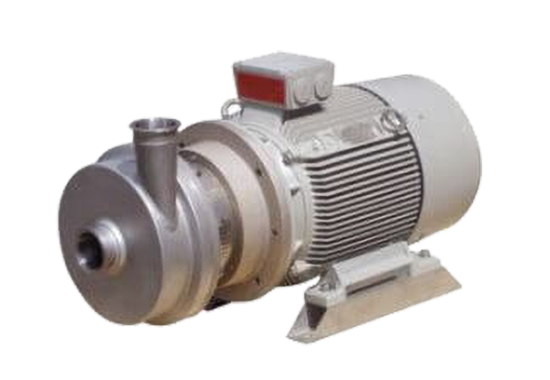

CSF CSM CENTRIFUGAL PUMPS

CSM Series, extremely robust stainless steel pumps designed for high pressure duties with medium to low flow rates; especially suitable for applications with high suction or system pressures. Made from solid CF-3M 1.4404 / AISI 316L stainless steel, the wetted parts have a high surface finish and electro-chemical polish. Single-stage and multistage models with up to 4 impellers.

STANDARD FEATURES

  • Certified hygienic design
  • Maximum reliability
  • Open Impeller
  • Wetted parts in CF-3M 1.4404 / AISI 316L stainless steel.
  • Investment cast and electro-chemically polished.
  • Internal finishes of 0,5 micron Ra are available on request.
  • Single Stage and Multi-stage options available



PUMP CAPABILITES

  • Design Pressure : 40 bar.
  • Temperature range: 0°C to 100°C.
  • Capacity up to 50 m3/h @ 150 m head (15 Bar)
  • Capacity up to 150 m3/h @ 60 m head (6 Bar)
  • EPDM, VITON Gaskets
