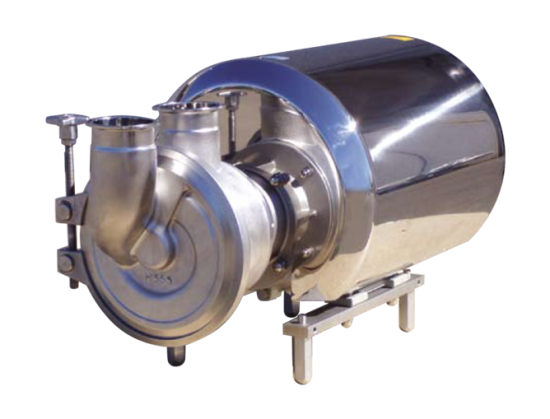

CSF ASH CENTRIFUGAL PUMPS

ASH Series pumps are approved to the latest US 3A sanitary standards; ideal for systems where compliance to the most strict hygiene regulations is essential. The ability of ASH pumps to repeatedly create a vacuum makes them ideal for applications where air or gas is entrained in the pumped liquid − Perfect for CIP scavenge and duties where the inlet pipework is only partially filed with fluid, including foaming products. Manufactured for a wide range of requirements in the Food, Beverage and Pharmaceutical process sector. This market leading design includes the latest technologies and construction
materials.

STANDARD FEATURES

  • Certified hygienic design
  • Maximum reliability

  • Close-coupled pumps with the impeller directly supported by the electric motor shaft.

  • Close-coupled design with separate IEC motor and flexible coupling.

  • Wetted parts in CF-3M 1.4404 / AISI 316L stainless steel.
  • Investment cast and electro-chemically polished.



PUMP CAPABILITES

  • Capacity up to 50 m3/h @ 50 m head
  • EPDM, VITON, SILICONE, PTFE Gaskets



SEALS

  • Mechanical seals with seats to EN 12756,
  • ISO 3069 standards.
  • Single internal mechanical seal
  • Flushed mechanical seal
  • Double flushed mechanical seal
