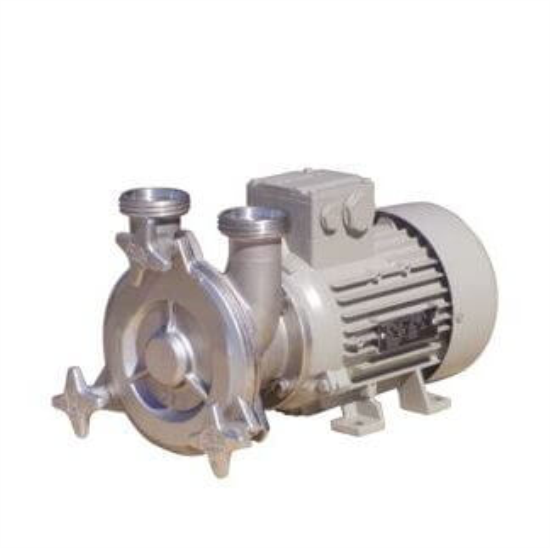

CSF A SELF-PRIMING PUMPS

The ability to maintain a vacuum under changing suction conditions makes A Series pumps ideally suited for scavenge duties and applications where the inlet pipework is only partially filled, or where the incoming liquid includes entrained air or gas. The construction materials and quick disassembly design make them particularly suitable for a wide variety of applications. They must be initially filled with liquid for the first start-up; afterwards, a small liquid reservoir remains to enable rapid self-priming to occur even if the suction pipe is emptied.

STANDARD FEATURES

  • Certified hygienic design
  • Maximum reliability

  • Close-coupled pumps with the impeller directly supported by the electric motor shaft.

  • Close-coupled design with separate IEC motor and flexible coupling.

  • Wetted parts in CF-8M 1.4408 / AISI 316L stainless steel.
  • Investment cast and electro-chemically polished.



PUMP CAPABILITES

  • Capacity up to 50 m3/h @ 35 m head (3.5 Bar)
  • EPDM, VITON, SILICONE, PTFE Gaskets



SEALS

  • Mechanical seals with seats to EN 12756.
  • ISO 3069 standards.
  • Single internal mechanical seal
  • Single external mechanical seal
