PHARMAFLO HEAT EXCHANGER

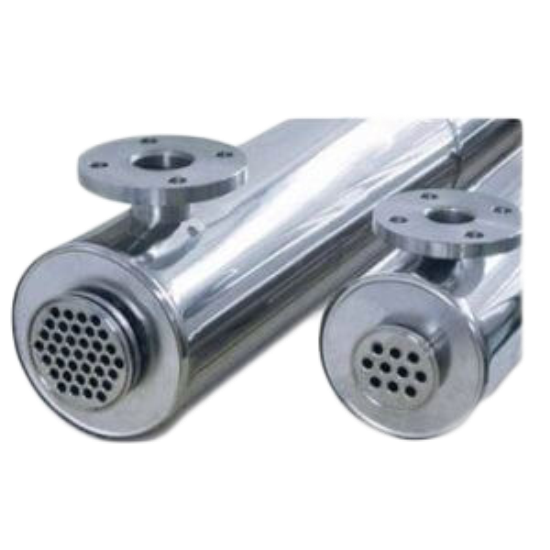

   Pharmaflo Heat Exchanger is realized to meet/satisfy the pharmaceutical industry need/request of high hygienic measures. Pharmaflo Heat Exchanger is manufactured by small diameter corrugated tubes inside an external jacket with tube plate on both ends. This solution remove the possibility of any contamination within/between sterile product and service fluid. An expansion joint is fitted on external jacket. The product to be thermally processed flows inside the small diameter tubes while service fluid flows inside the external jacket.

STANDARD FEATURES

  • Low to High Capacity
  • Stainless steel AISI 304/316 (Other kind of materials are available on request)
  • <Ra 0,5 product side – other finishing on request
  • Connections CLAMP-FLANGE
  • Pressure up to 10 bar  (Higher pressures are available depending on utilized connections)
  • Every exchanger is in accordance with 97/23/CE standards (PED)
