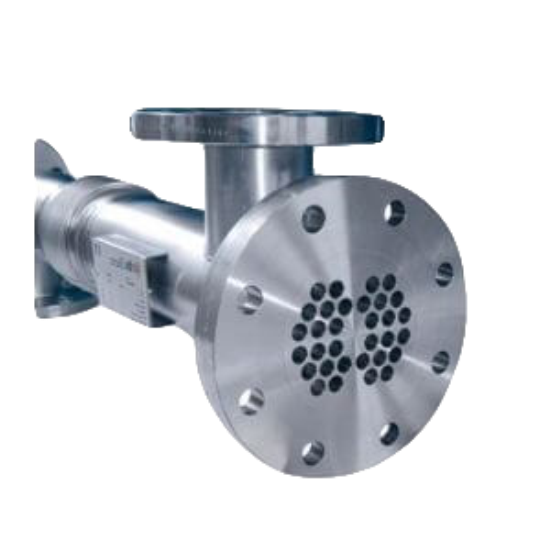

MULTIFLO HEAT EXCHANGER

MULTIFLO Heat Exchanger consists of small diameter corrugated tubes fitted inside an external jacket and welded on tube plates at end sides. MULTIFLO is a multipassage/many-passages heat exchanger and tubes side backflow is allowed by special heads.  An expansion joint is fitted on external jacket. The product to be thermally processed flows inside small diameter tubes while service fluid flows inside the (external) jacket.  MULTIFLO Heat Exchanger is fully/wholly welded.

STANDARD FEATURES

  • Low to High Capacity
  • Stainless steel AISI 304/316 (Other kind of materials are available on request)
  • Product side Ra <0,8 µm
  • Connections FLANGE UNI DIN ANSI
  • Pressure up to 10 bar  (Higher pressures are available depending on utilized connections)
  • Every exchanger is in accordance with 97/23/CE standards (PED)
