CROSSFLO INDUSTRIAL HEAT EXCHANGER

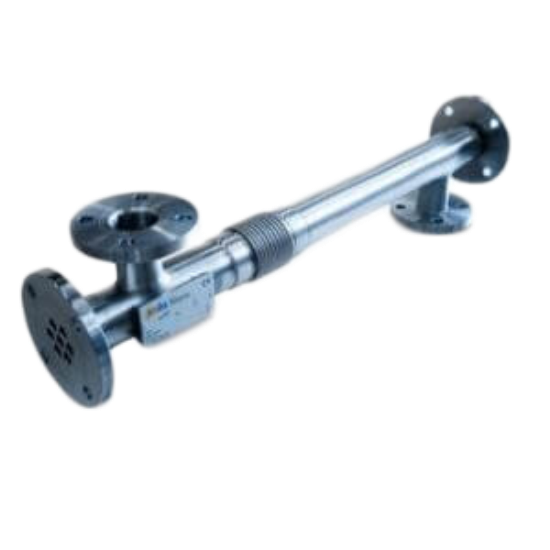

The Multitube Crossflo Heat Exchanger consists of small diameter corrugated tubes fitted inside an external jacket and welded on tube plates at end sides.  An expansion joint is fitted on external jacket. The product to be thermally processed flows inside small diameter tubes while service fluid flows inside the external jacket.  Multitube Crossflo Heat Exchanger is fully/wholly welded.

STANDARD FEATURES

  • Low to High Capacity
  • Stainless steel AISI 304/316 (Other kind of materials are available on request)
  • Product side Ra <0,8 µm
  • Connections DIN-CLAMP-SMS-BS-FLANGE
  • Pressure up to 12/16 bar  (Higher pressures are available depending on utilized connections)
  • Every exchanger is in accordance with 97/23/CE standards (PED)
