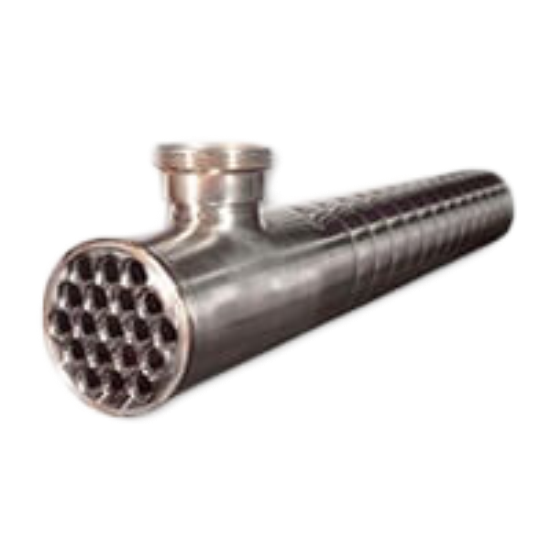

MIXFLO MULTITUBE HEAT EXCHANGER

The Multitube Mixflo Heat Exchanger is manufactured by small diameter tubes fitted inside an external jacket and welded from one end to the other. The product to be thermally processed flows inside the smaller tube while service fluid flows inside the (external) jacket. Multitube Mixflo Heat Exchanger is fully/wholly welded.

STANDARD FEATURES

  • Low to High Capacity
  • Stainless steel AISI 304/316 (Other kind of materials are available on request)
  • Product side Ra <0,8 µm
  • Connections DIN-CLAMP-SMS-BS-FLANGE
  • Pressure up to 10 bar  (Higher pressures are available depending on utilized connections)
  • Every exchanger is in accordance with 97/23/CE standards (PED)
